End glow Fiber Optic
Onvalighting PMMA plastic optical fibers combine flexibility and durability, offering clear light transmission and superior attenuation. These bendable, break-resistant fibers provide long-lasting performance with extended warranty.
China Fiber Optic Parameter:
-Core Material:PMMA
–Cladding Material : Fluorinated Polymer
-Numerical Aperture:0.5
-Core Refractive Index:1.49
–Operating Temperature: Temperature range of -20°C to +70°C.
|
|||||||||||||||||||
| Item | Picture | Size（mm） | Material | Attenuation (db/m) | Length（m） | G.W(KG) | Specification | Remark | |||||||||||
| OV-POF-0.25 |
|
0.25 | PMMA | ≦0.25db/m | 12000 | 2.5 | Applied Wavelength | 650nm | End Glow Transparent | ||||||||||
| OV-POF-0.5 | 0.5 | PMMA | ≦0.25db/m | 6000 | 2.5 | Attenuation | ≤0.25dB/m | ||||||||||||
| OV-POF-0.75 | 0.75 | PMMA | ≦0.25db/m | 2700 | 2.5 | Angle of Incidence | ≤60° | ||||||||||||
| OV-POF-1.0 | 1.0 | PMMA | ≦0.25db/m | 1500 | 2.5 | Bandwidth | ≥10MHz.100m | ||||||||||||
| OV-POF-1.5 | 1.5 | PMMA | ≦0.25db/m | 700 | 2.5 | Numerical Aperture | 0.5 | ||||||||||||
| OV-POF-2.0 | 2.0 | PMMA | ≦0.25db/m | 350 | 2.5 | Refractive Index Change | Step Type | ||||||||||||
| OV-POF-2.5 | 2.5 | PMMA | ≦0.25db/m | 250 | 2.5 | Working Temperature | -20℃～ 70℃ | ||||||||||||
| OV-POF-3.0 | 3.0 | PMMA | ≦0.25db/m | 150 | 2.5 | Storage Temperature | -20℃～ 70℃ | ||||||||||||
Mistubishi ESKA Fiber Optic Parameter:
-Core Material:PMMA
–Cladding Material : Fluorinated Polymer
-Numerical Aperture:0.5
-Core Refractive Index:1.49
–Operating Temperature: Temperature range of -55°C to +70°C.
|
|||||||||||||||||||
| Item | Picture | Size（mm） | Material | Attenuation (db/m) | Length（m） | G.W(KG) | Specification | Remark | |||||||||||
| OV-POF-CK10 |
|
0.25 | PMMA | ≦0.25db/m | 12000 | 1.7 | Numerical Aperture | 0.5 | Bare Optical Fiber | ||||||||||
| OV-POF-CK20 | 0.5 | PMMA | ≦0.25db/m | 6000 | 2.7 | Attenuation | ≤0.2dB/m | ||||||||||||
| OV-POF-CK30 | 0.75 | PMMA | ≦0.25db/m | 2700 | 2.7 | Core Refractive Index | 1.49 | ||||||||||||
| OV-POF-CK40 | 1.0 | PMMA | ≦0.25db/m | 1500 | 2.8 | Bandwidth | ≥10MHz.100m | ||||||||||||
| OV-POF-CK60 | 1.5 | PMMA | ≦0.25db/m | 700 | 2.8 | Numerical Aperture | 0.5 | ||||||||||||
| OV-POF-CK80 | 2.0 | PMMA | ≦0.25db/m | 350 | 1.7 | Refractive Index Change | Step Type | ||||||||||||
| OV-POF-CK100 | 2.5 | PMMA | ≦0.25db/m | 250 | 2.2 | Working Temperature | -55℃～ 70℃ | ||||||||||||
| OV-POF-CK120 | 3.0 | PMMA | ≦0.25db/m | 150 | 2.0 | Storage Temperature | -55℃～ 70℃ | ||||||||||||
ESKA is a type of plastic optical fiber that leverages the outstanding light-transmission capabilities of acrylic resins. It offers several significant advantages over glass optical fibers, such as being lightweight, flexible, and easy to process. We are promoting ESKA for various applications within the fiber optic lighting industry.
Key Features:
1.Safety & Protection:
-Advanced cold light source technology
-Zero UV radiation emission
-Complete electrical isolation for maximum safety
-Ideal for sensitive environments
2.Performance Excellence:Superior light transmission quality
-Full spectrum color display
-High brightness output
-Consistent illumination performance
3.Eco-Friendly Design:Minimal power consumption
-Low signal attenuation
-Energy-efficient operation
-Environmentally sustainable solution
4.Installation Benefits:Flexible cable management
-Easy integration with existing systems
-Versatile application options
-Simple maintenance requirements
5.Long-Term Reliability:Extended operational lifespan
-Stable performance over time
-Quick and easy maintenance
-Cost-effective lighting solution

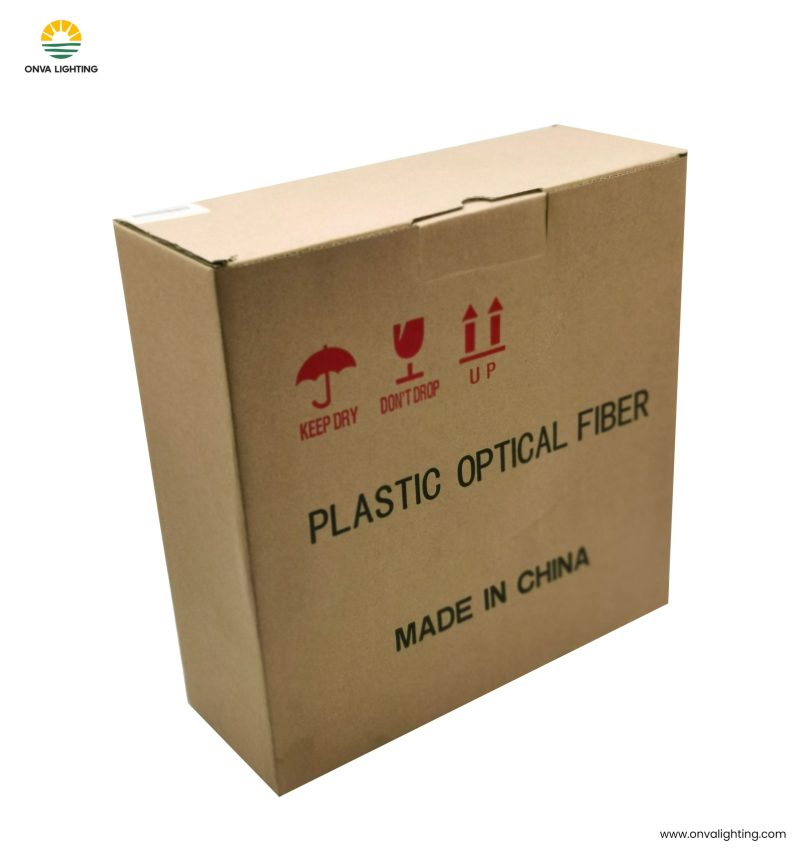

Packing:
Applications:

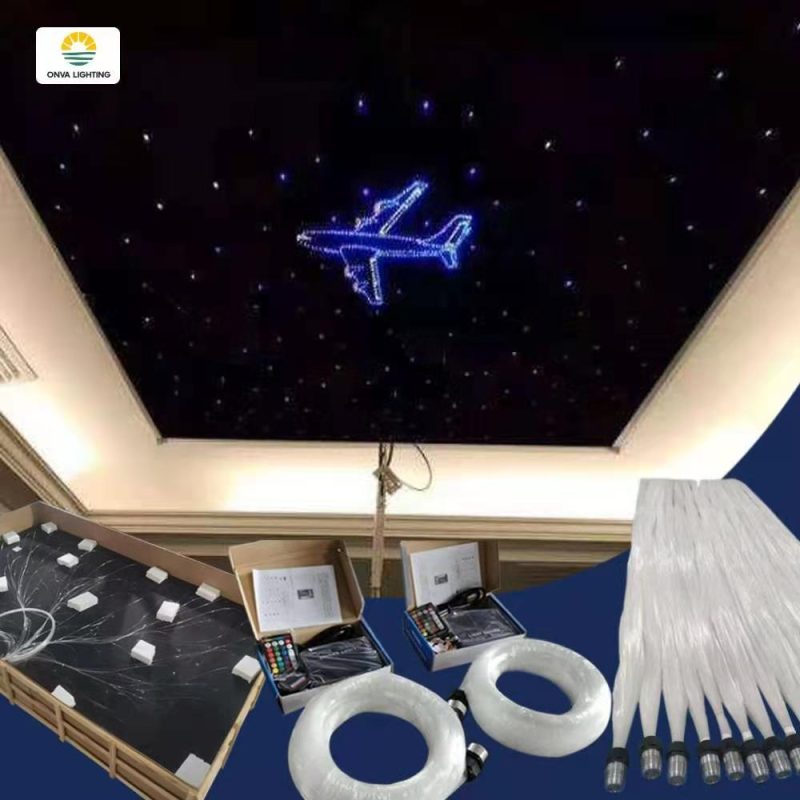

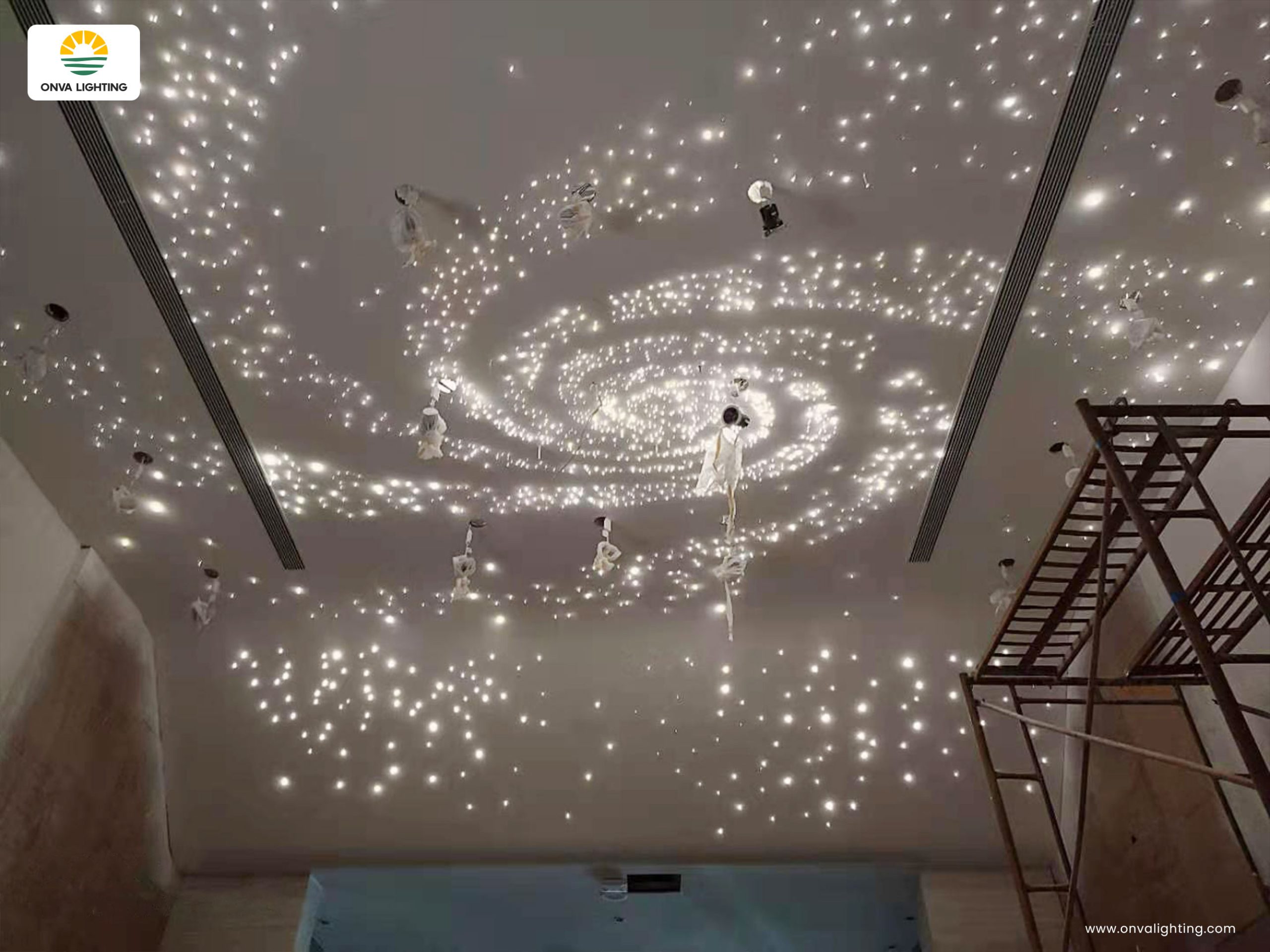

Ideal for lighting solutions such as fiber optic lighting systems for homes and theaters, decorative installations like starry ceilings in cinemas and pools and stretch ceiling.
